Nissan R31 Skyline - Centre Console Charging Plate

Nissan R31 Skyline - Centre Console Charging Plate

$100.00 AUD
$100.00 AUD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Ships in 1-4 days

PREORDER OPEN - Expected Dispatch Late June.

Overview

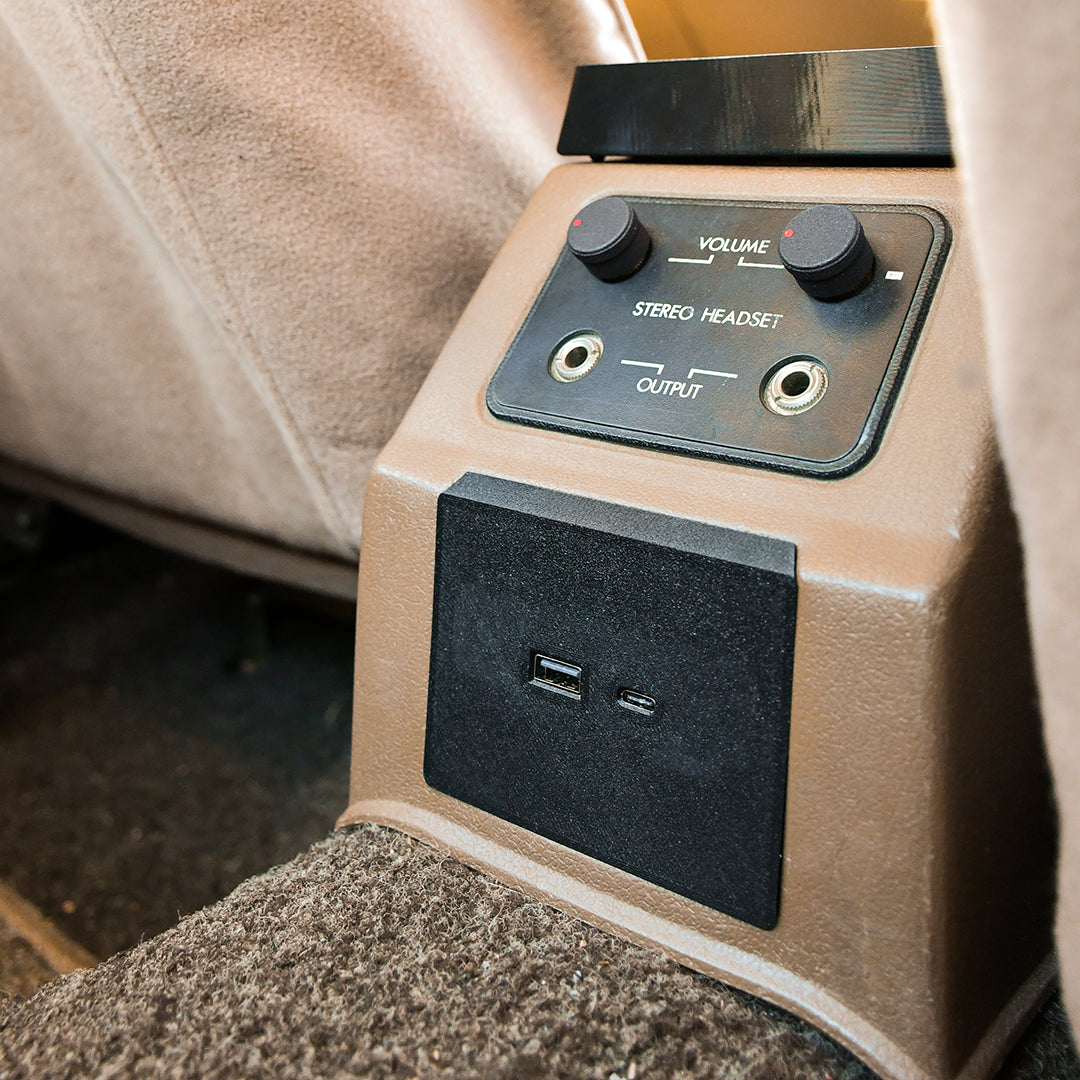

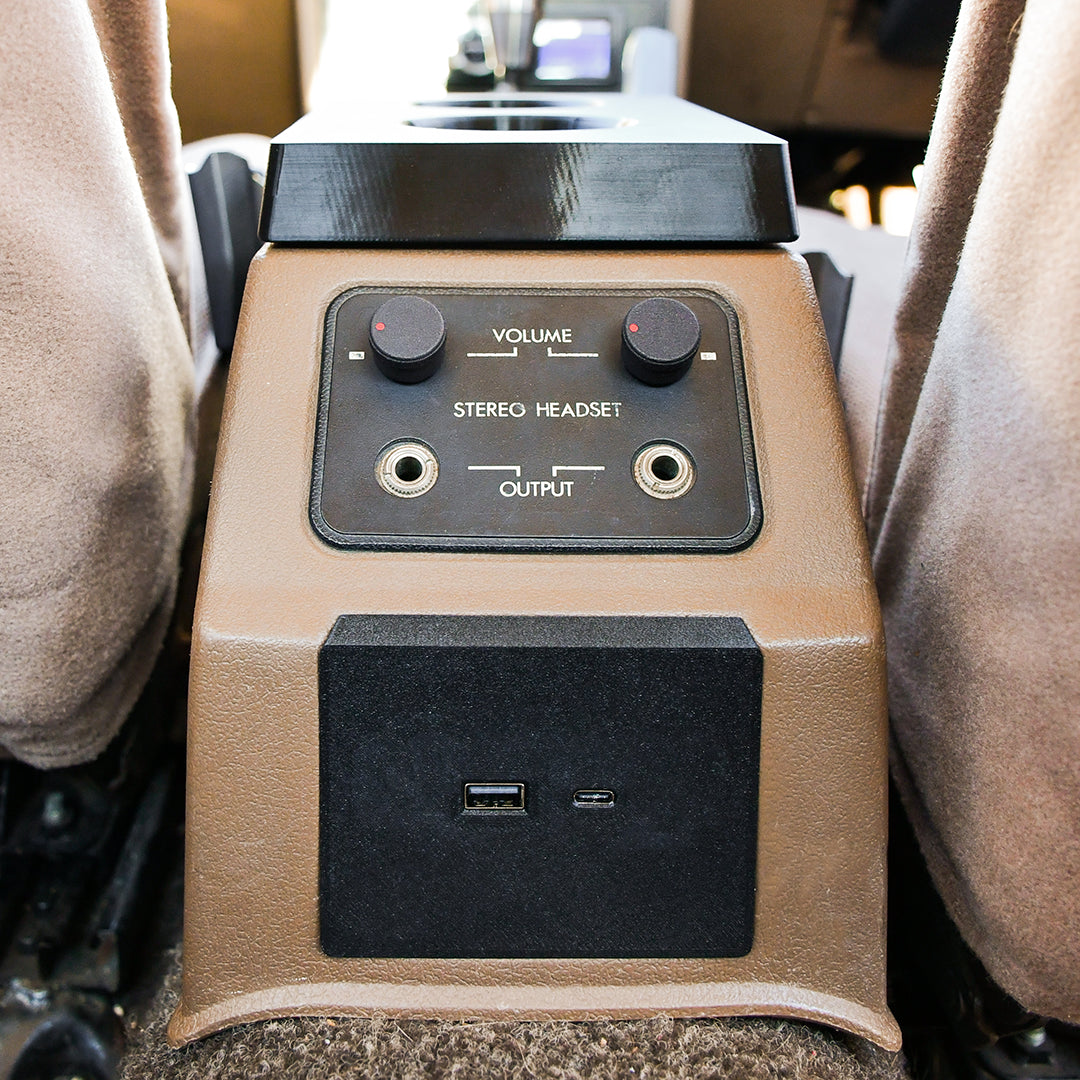

This Centre Console Charging Plate is designed to replace the factory rear ashtray, providing a clean and purposeful finish to the centre console. This insert neatly sits on the rear face of the centre console and provides 2x fast charging power deliveries: USB A + USB C.

The plate mounts securely using the factory ashtray mounting points along with two small adhesive pads to ensure flush fitment. Designed to complement the surrounding interior trim, it provides a simple solution for updating the appearance and function of the centre console while maintaining a factory-like aesthetic.

Features

  • 3D printed in engineering grade filament (ABS-GF)
  • Reverse-engineered design, precise & flush fitment.
  • Easy installation, fused wiring harness included.
  • Overcurrent, Short-circuit + Temperature Protection
  • Supports Multiple Fast Charging Protocols
    • Input voltage 6-32V
    • Output voltage 3-12V
    • Output power max 24W

Specifications

The complete kit includes 4x components:

  • 1x Centre Console Charging Plate

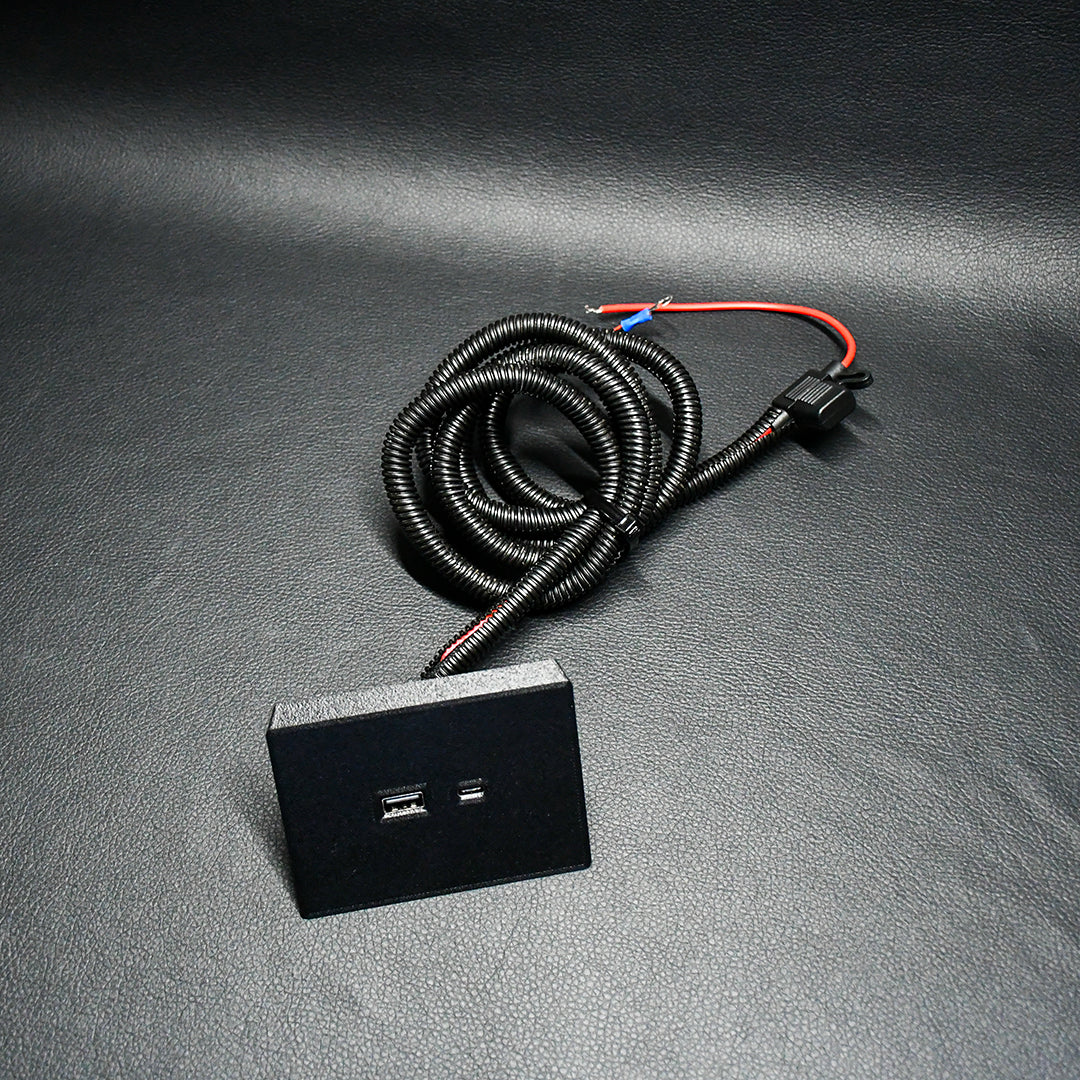

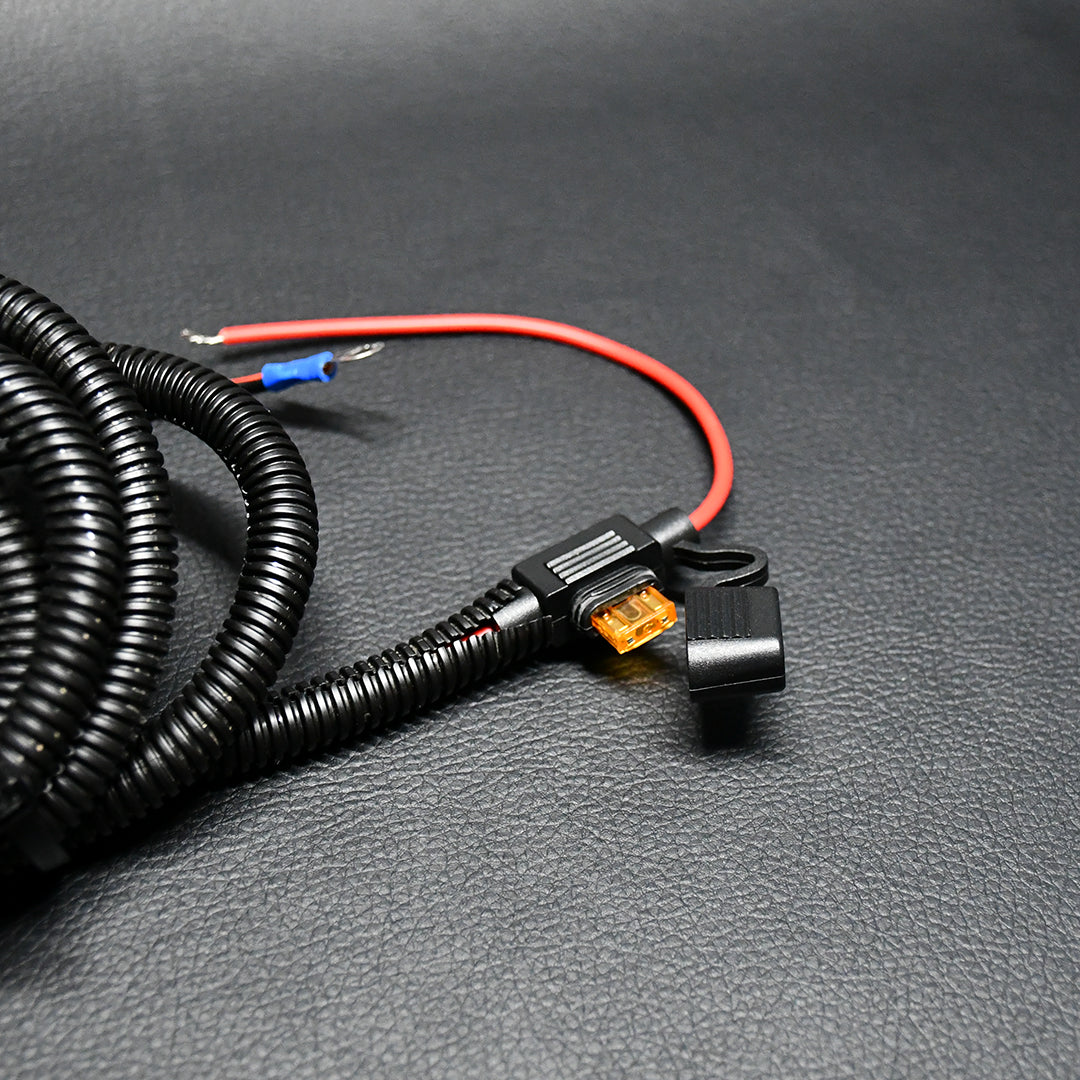

  • 1x Wiring Harness (includes 5amp fuse & in-line holder)
  • 2x Phillips Head Fasteners

Compatibility

  • R31 Skyline Ti + Silhouette Centre Consoles

Installation Guide

  1. Remove the centre console from the interior (access is required to 2x fasteners located on the underside of the console)
  2. Remove the backing sheets from the 2x dots of adhesive on the lower corners.
  3. Locate the 2x fastening points on the underside of the rear face of the centre console.
  4. Align the holes in the blanking plate with the centre console mounting points and fasten until secure.
  5. Apply firm even pressure on the lower corners to seat the plate flush against the console.
  6. Run the supplied wiring harness along the top of the transmission tunnel and tuck it underneath all centre trim pieces until you can pull the cable up and behind the dash. We recommend splicing and joining the 12v and ground to the stereo/radio wires, however any 12v and stable ground are adequate.
  7. Reinstall centre console into interior.

*NOT INTENDED FOR ROAD USE
