Nissan R31 Skyline - Wagon Taillight Trim

Overview

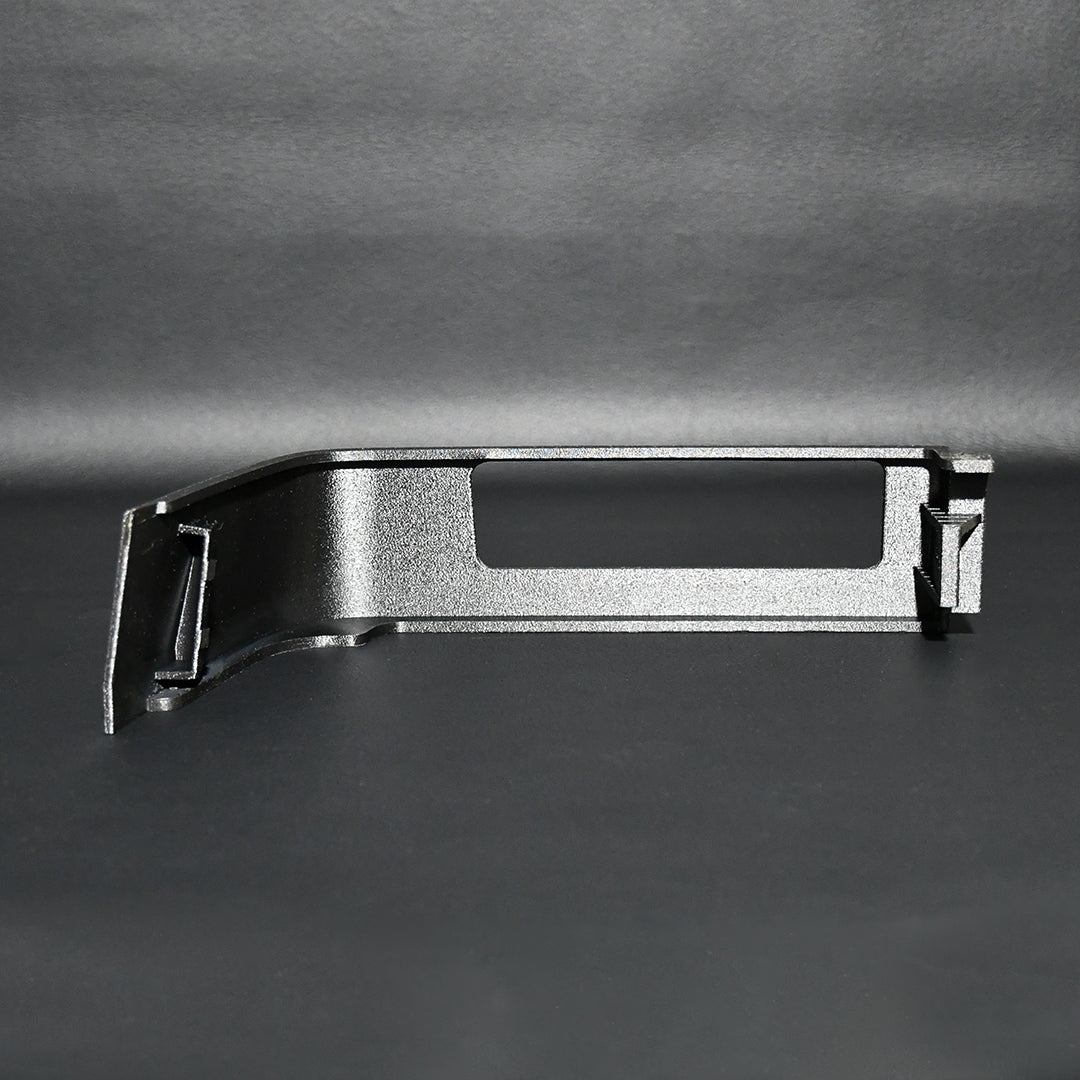

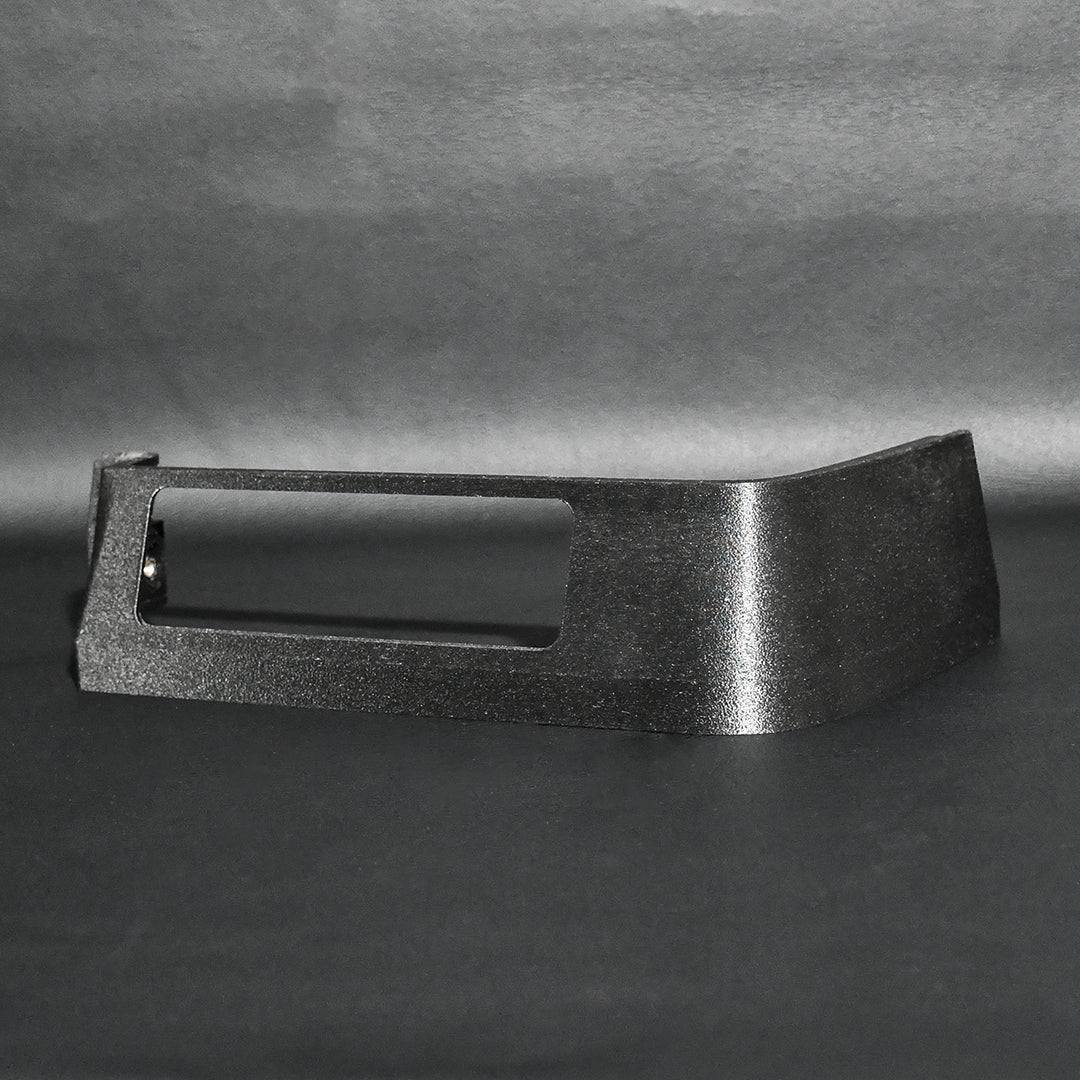

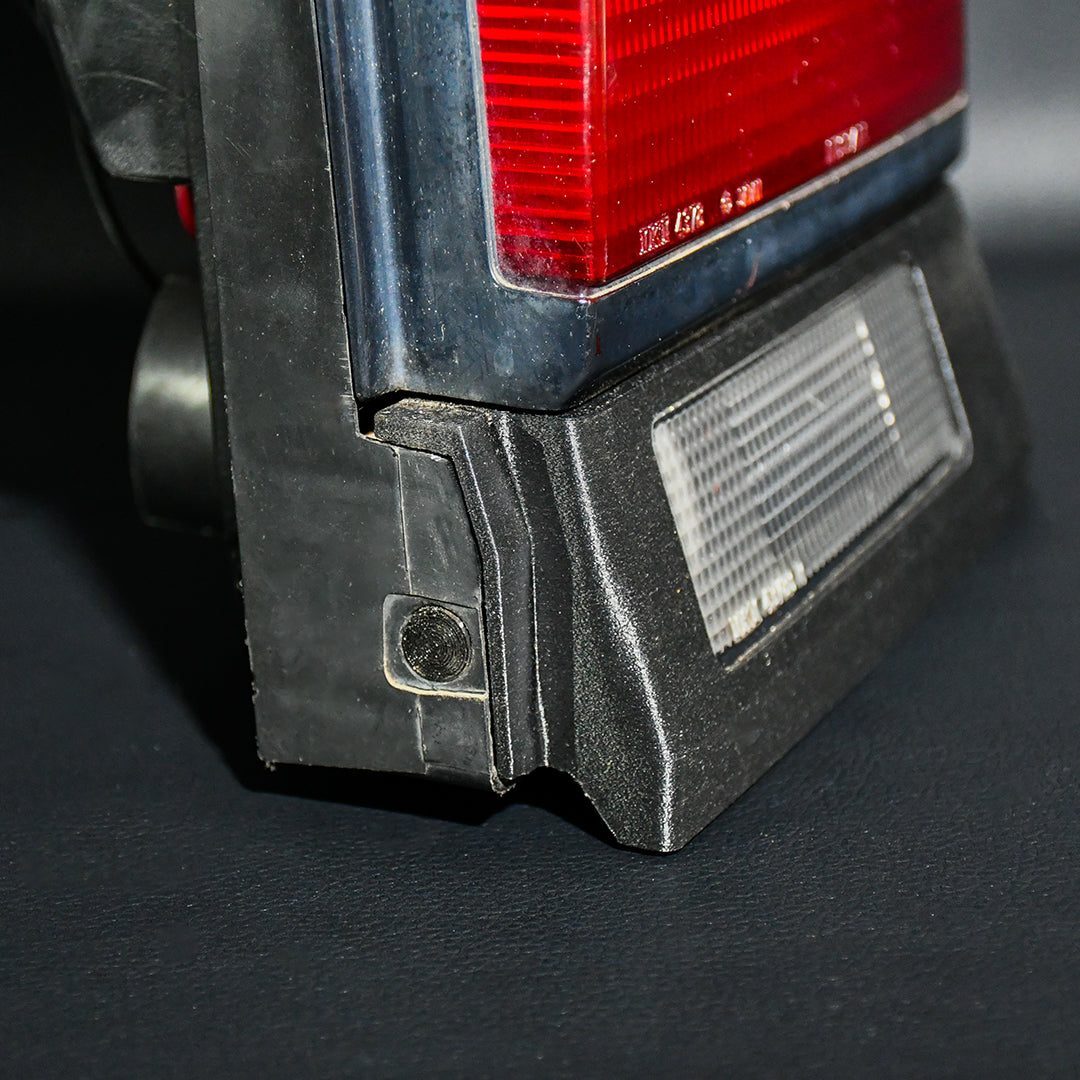

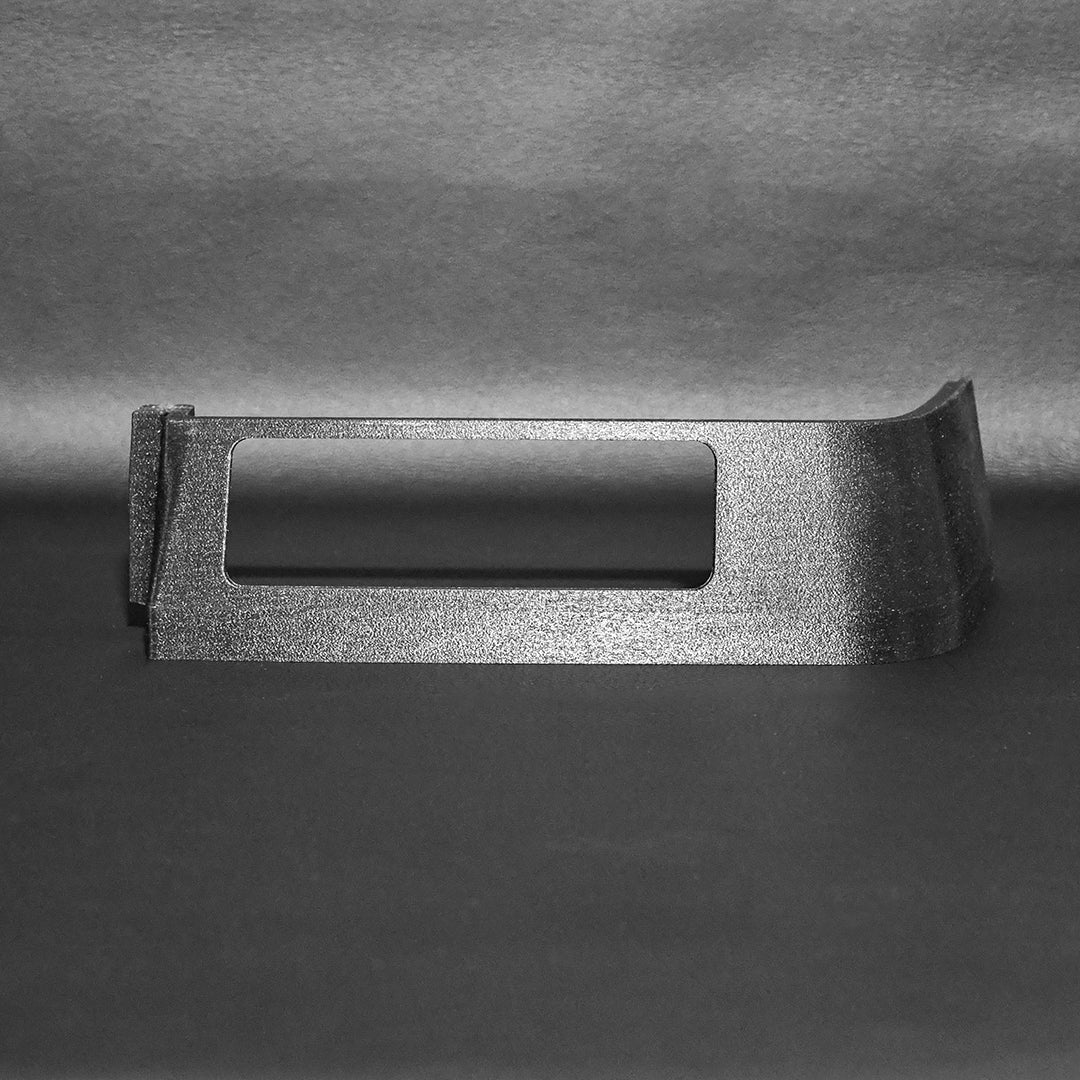

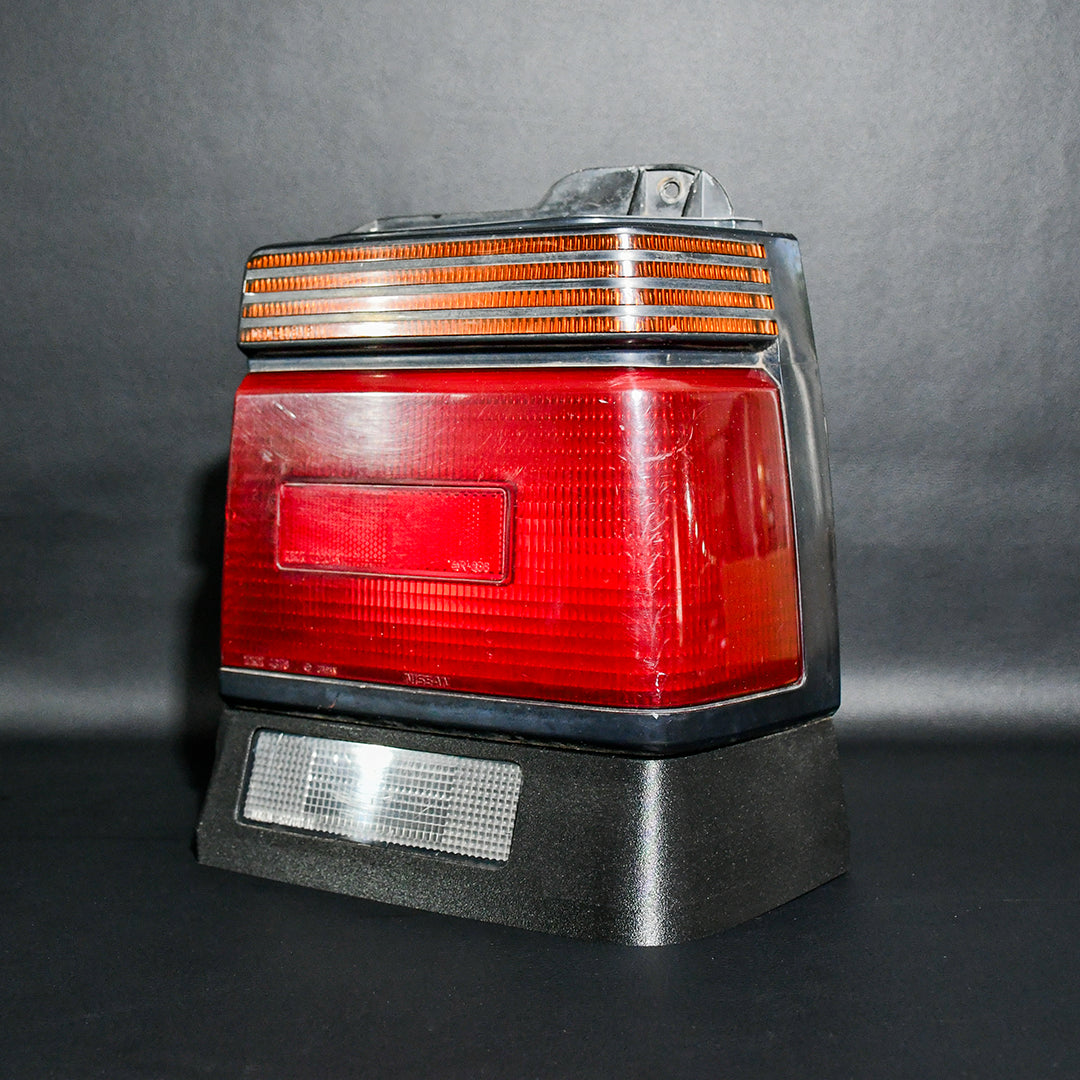

This component is designed to sit over the lower section of the rear taillight, bridging the transition between the body lines and the taillight assembly. It frames the reverse light lens and completes the rear-end finish specific to wagon variants.

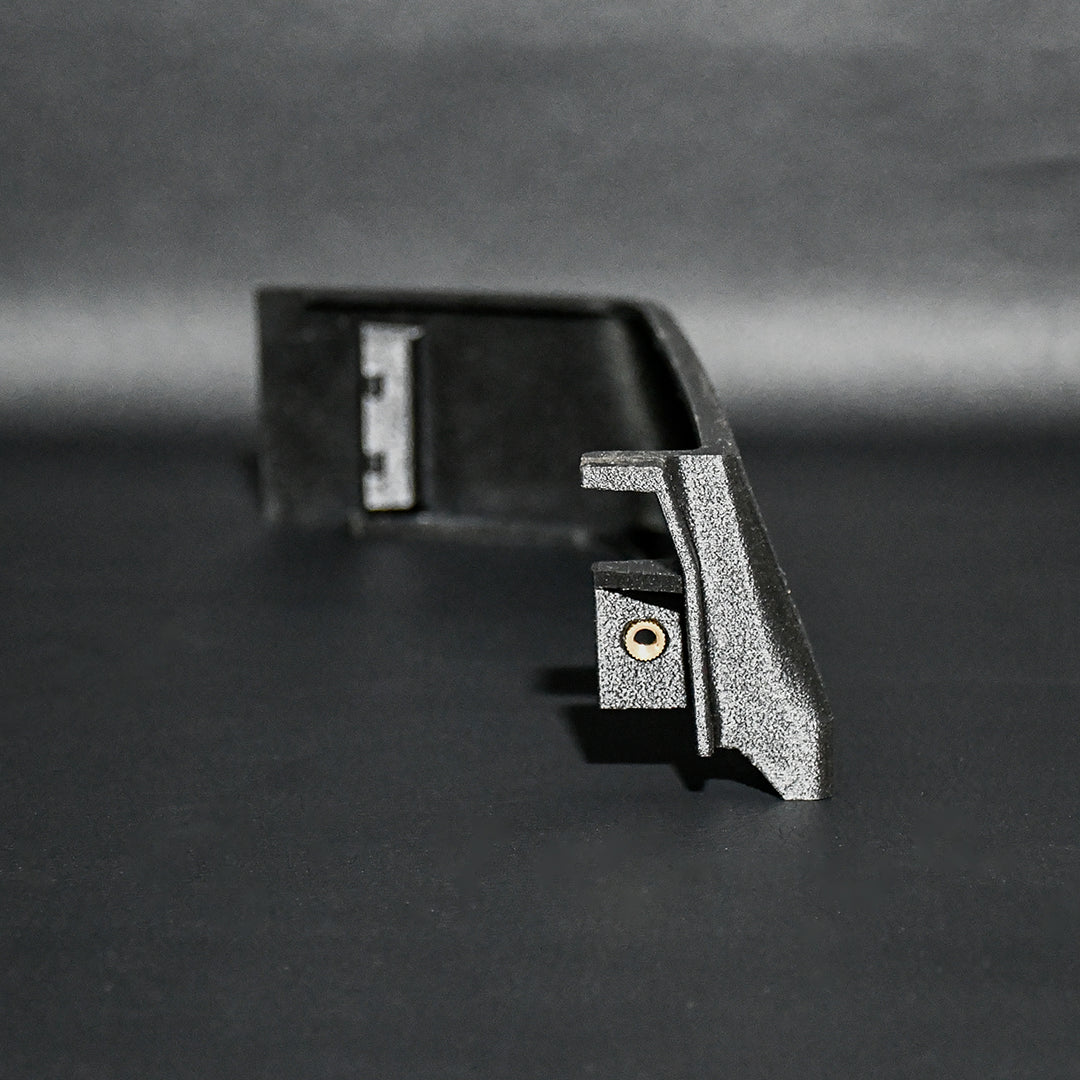

Includes integrated press-fit clips to securely mount in conjunction with a threaded insert to mechanically fasten the assembly. Hide the fastener and seal the unit from weather with the included tethered caps pairing cleanly with the factory taillight and body geometry, ideal for direct replacements or restorations where OEM+ fitment and finish are required.

Features

• 3D printed in engineering grade filament (ABS + TPU)

• Retro-fit design based on precise 3D scan
• Threaded brass inserts for solid mounting points
• Zinc-plated hardware included
• Retains OEM fastening points


Specifications

Select from LHS or RHS only or as a complete kit.

The complete kit includes 6x components:

• 1x RHS Wagon Taillight Garnish
• 1x LHS Wagon Taillight Garnish
• 2x Tethered Fastener Caps
• 2x M5x12 Phillips Head Screws

Installation Guide:

1. Align the garnish to the lower section of the corresponding taillight, ensuring the cut-out aligns with the reverse light lens.

2. Apply even, firm forward pressure to press-fit the curved outer face of the garnish into the taillight.
3. Locate, insert and tighten the fastener along with the tethered caps on the inner face of the garnish to securely fix the garnish in place.

*NOT INTENDED FOR ROAD USE
