Nissan - Strut Top Covers

Overview

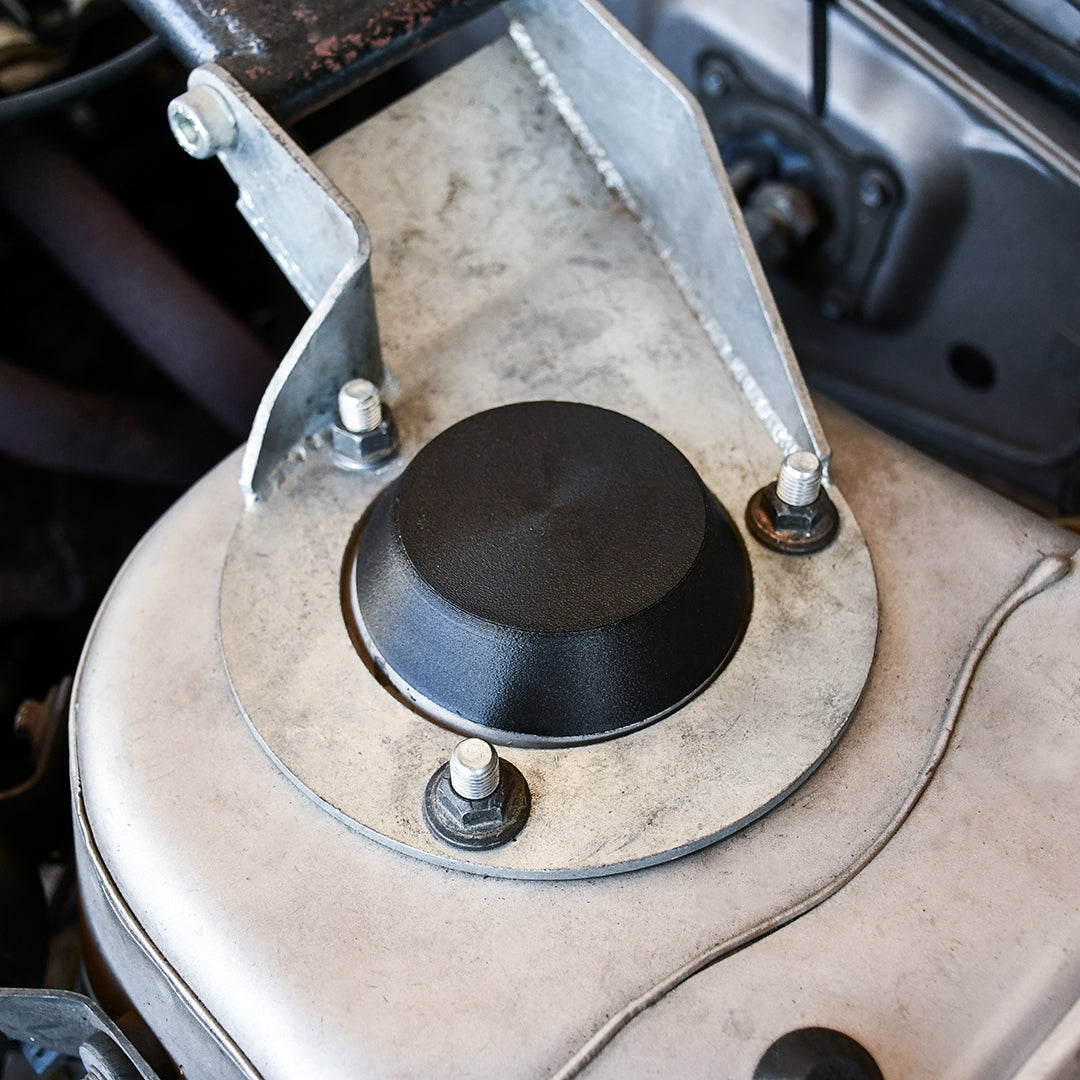

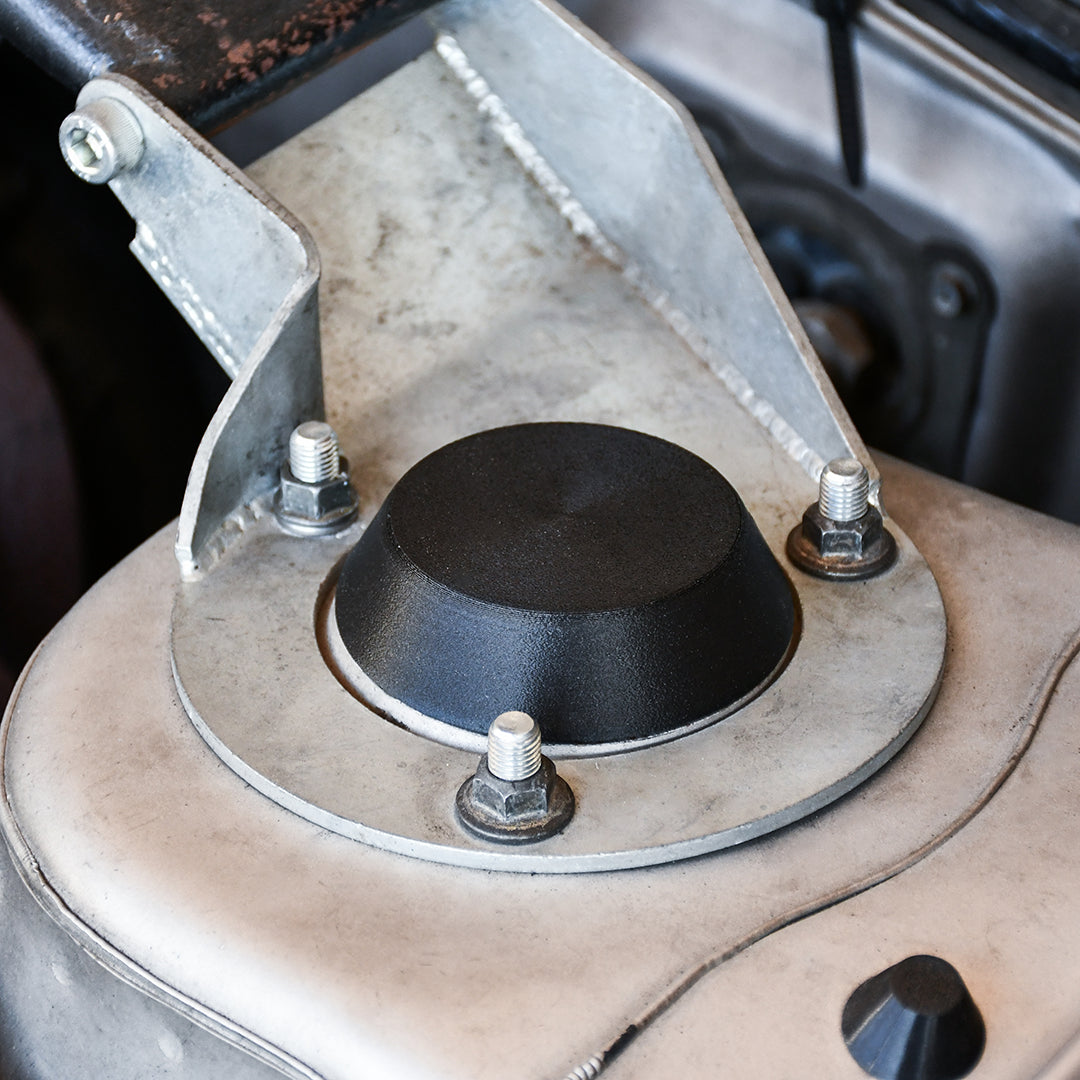

These Strut Top Covers conceal the exposed top of the front strut assembly, providing a cleaner and more finished appearance within the engine bay.

The covers are designed with an inner retaining ring that preloads the outer clips to securely press fit the cover into the factory circular opening in the strut tower. This provides a secure, quick installation while allowing the covers to be removed when required for camber or dampening adjustment.

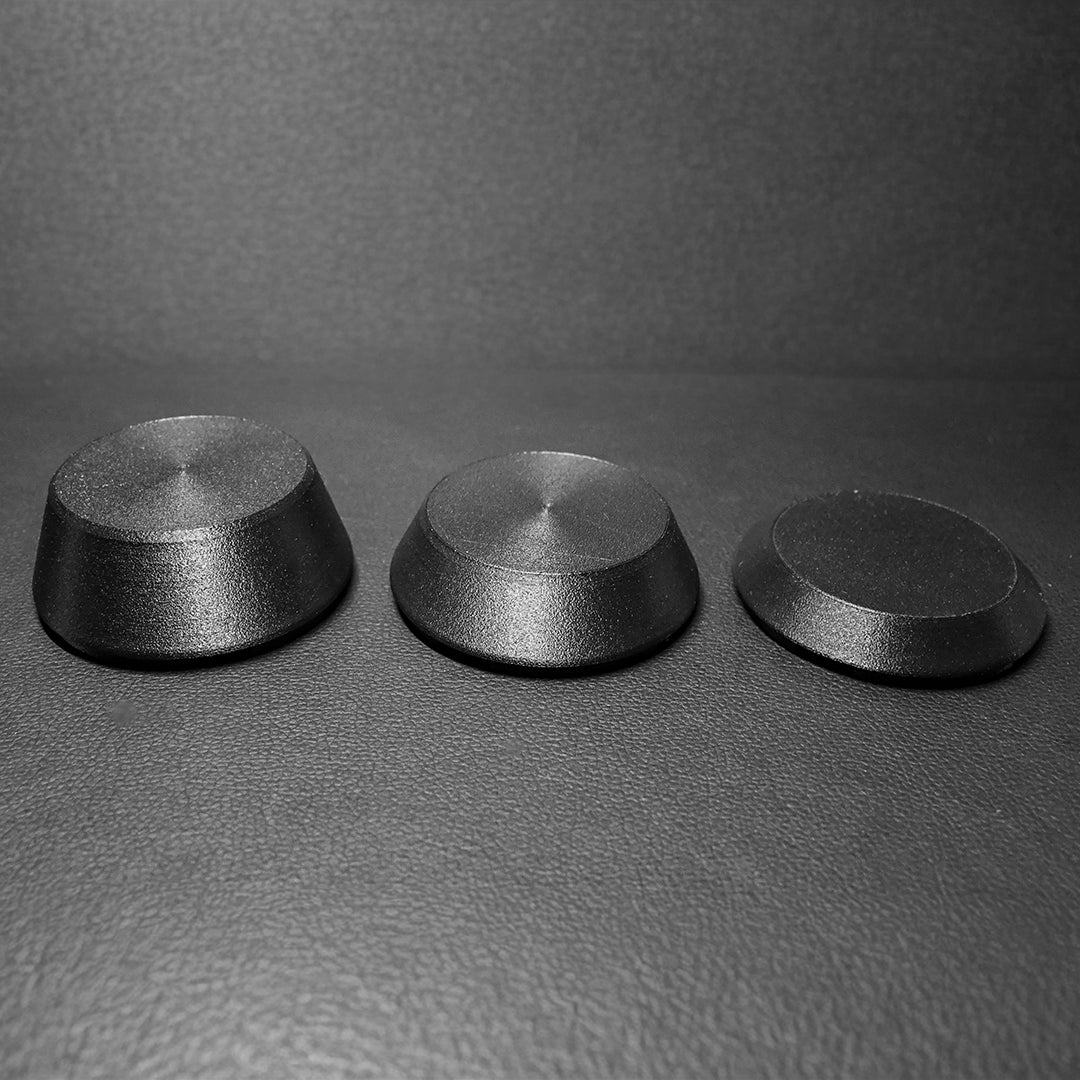

Select from different height profiles that allow clearance to accommodate many coilover setups with top mounted dampener adjusters while hiding the camber adjustment hardware concealed beneath the cover. Low profile covers have 10mm of internal height clearance, Medium profile covers have 20mm clearance and High profile covers have 30mm clearance.

We suggest measuring the top of your strut setup to ensure you select the correct height profile so there is enough clearance to avoid interference with dampening adjusters.

*These covers can be modified to suit any custom setup, complete this form if you require a bespoke alternative

Features

• 3D printed in engineering grade filament (ABS-GF)
• Reverse-engineered design, precise fitment.

• Compatible with most strut braces.
• Quick, easy tool-free installation
• Suits most coilover and strut suspension setups.
• Clearance allowed for raised strut dampeners.
• Select from different height profiles.
• Secure press-fit installation.


Specifications

The complete kit includes 2x components:

• 2x Front Strut Top Covers

Compatibility

• R31 Skyline / Pintara
• HR31 / Passage
• S13 Silvia / 180sx / 240sx
• S14 Silvia / 200sx
• S15 Silvia / 200sx

Installation Guide

1. Align the bottom face of the strut top cover with the circular cutouts in the top face of the front strut towers.
2. Apply even firm pressure to securely press-fit the cover into the cutout.

*NOT INTENDED FOR ROAD USE
